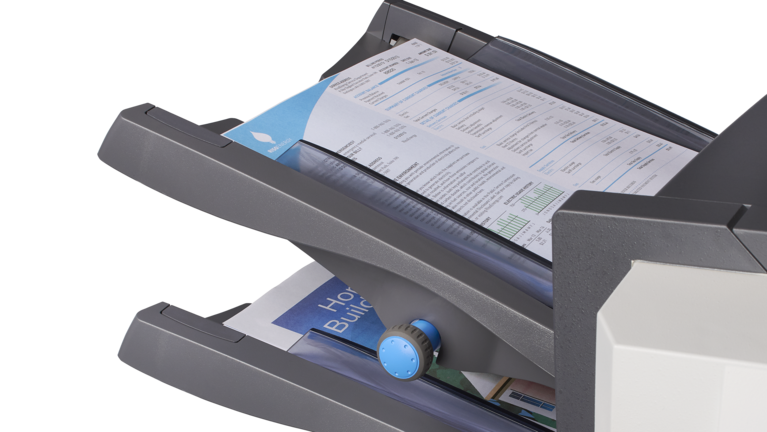

Inserting machin SI 4350 - HEFTER Systemform Inserting machin SI 4350 - HEFTER Systemform Feeding stations Feeding stations Envelope feeding Envelope feeding Standard stacking for envelopes Standard stacking for envelopes Enclosure feeding: 30 cm feeding capacity Enclosure feeding: 30 cm feeding capacity The optional power stacker keeps the print sequence and can stack up to 800 envelopes The optional power stacker keeps the print sequence and can stack up to 800 envelopes

Inserting machine SI 4350

The new generation of inserting machines

The HEFTER SI 4350 inserting machine features a high variety of applications. It's easy and comfortable to use with its large coloured touch screen. The SI 4350 is a very productive machine with up to 3.500 cycles/h for secure applications like salary slips, invoices or individual direct mailings - up to 50.000 insertions per month.

Ask for an offer Zurück zur Übersicht

Highlights of the inserting machine SI 4350

  • 2 feeding stations for documents
  • Extra large feeding station for enclosures up to 2 mm thickness
  • Fold types: Single, wrap and double parallel fold
  • Automatic fold adjustment
  • Envelope lift
  • Large, coloured touch screen
  • Up to 20 jobs programmable
  • OMR and 2D-Code reading (optional)
  • Automatic double sheet control
  • "CasCade function": Automatic switch if one feeding station is empty
  • Speed: max. 3.500 cycles/h

Intelligent inserting with OMR reading

For your outgoing mail you need to prepare e.g

  • Invoices/reminders
  • Salary slips
  • Mailings with individual enclosures



And this, if any possible, automatically. Often, there is also the task to insert an individual number of sheets per envelope. The SI 4350 offers the best solution: This inserting machine is equipped with an OMR (Optical Mark Recognition) reading function by default.

  • Control codes printed on the documents are recognized by the inserting machine so that it collects and inserts an individual number of sheets per envelope reliably.
  • Additionaly, postage optimisation and an individual feeding of enclosures is offered.



Optionally, the SI 4350 functions can even be extended, e.g. with:

  • Reading station for 2-D-code reading
  • Power stacker tray
  • Inline connection to a franking machine



Completely adapted to your organisation.

Product video Inserting machine SI 4350

If you can not play the video, you can find a Download-LINK in the download area.
Please click here.

Technical data & downloads of your inserting machine SI 4350

Standard feature: INSERTING MACHINES SI 4350
Automatic feeding station for unfolded documents 2
Automatic feeding station for enclosures 1 / extra large
Paper width (in mm) 178-229
Paper length (in mm) 178-406
Paper weight for unfolded documents (in g / m2) 70-120
Max. thickness of the documents / enclosures in envelope size 2,0 mm
Fold types Single, wrap, Z-, double parallel fold
Automatic fold type adjustment yes
Test function yes
Speed, max. (cycles/h)* 3.500
Feeding capacity per document station* 325
Multiple feeding of station 1 yes
Feeding capacity of enclosure station* up to 300 mm
Feeding capacity of envelope station, max. (number of envelopes)* 300
Envelope sizes C6/5, C5, C6 (optional)
Envelope lift yes
Sheet collection before folding Up to 5 sheets (wrap or Z-fold), up to 10 sheets
(single fold)
Sheet collection before folding Up to 5 sheets (wrap or Z-fold), up to 10 sheets
(single fold)
Cascade function (automatic switch between stations if one station is empty) yes
Daily mail function yes
Number of programmable jobs 20
Large, coloured touch display yes
Reporting via WiFi yes
OMR (Optical Mark Recognition) yes (optional)
Automatic counter / pre-counter for envelopes yes
Automatic double and missing sheet control yes
Automatic fault management yes
Options
OCR- and 2-D-code reading yes
Inline connection to a franking machine yes
Power stacker yes
Envelope size C6 (114 x 162 mm) yes

 *depending on material and applications
subject to technical changes
