Inserting system SI 5250

High performance at short set-up times

Prepare your inserting centre exactly to your needs and have all your mail duties and requirements done automatically.

Ask for an offer Back to overview

Basic modules of the inserting system SI 5250

Inserting system SI 5250

  • Even the smaller system offers a surprising flexibility and numerous possibilities of document processing.

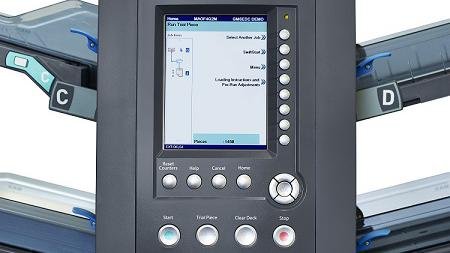

    TOWER FEEDER WITH OPERATING PANEL
  • The towerfeeder - the heart of the system – has already 4 feeding stations for documents, enclosures or envelopes up to size C4.
  • The inserting system SI 5250 is controlled and programmed at an operating panel with coloured display. It supports the user with graphics, drawings and texts so that the user is always informed about the current status and condition of the system.
  • 24 different jobs can be stored
  • The maximum speed up to 4.300 cycles/ h

    FOLDING MODULE
  • The folder can be adjusted electronically to the fold types single, wrap, Z- and double parallel fold. With the wrap or Z-fold up to 8 sheets can be processed
  • With the help of an electronic control system you can even use different fold types within one job

Variable applications – strong and fast – short set-up times – extendable with modules

A compact, flexible and professional inserting system should be able to handle a high number of tasks and requirements, such as:

  • Mailings, invoices, reply notes or enclosres - folded and unfolded - are to processed with different envelope sizes from C6/5 up to C4
  • Personalized outgoing mail should be inserted fully automatically with a control character code - such as a barcode
  • It should be possible to control individual documents
  • When changing a job the set-up times should be rather short
  • A system should be modular extendable for possible further demands in the future

The HEFTER Systemform inserting system SI 5250 is the solution for this challenging task. It stands on a vertically adjustable table.


Further options:

  • Intelligent operation with BCR or 2-D Datamatrix Code
  • High volume feeding station for documents
  • Separation kit for feeding stations
  • Conveyor stacker
  • Franking machine connection
  • Franking machine kit
  • C4-sealing unit

Technical data & downloads Inserting system SI 5250 / 5450

Technical specifications INSERTING SYSTEMS SI 5250 / 5450
Important technical data SI 5250 SI 5450
Tower feeder with feeding stations for documents, enclosures and envelopes 4 4
High volume feeding stations for envelopes (up to 500 envelopes) no yes
Envelope sizes C6/5, C5, C4 C6/5, C5, C4
Automatic and simultaneous operation with different envelope sizes no yes
Feeding thickness, envelopes, max. 2,5 mm 2,5 mm (optional 4 mm)
Fold types Single, wrap, Z-, double parallel fold Single, wrap, Z-,double parallel fold
Electronic fold type adjustment yes yes
Speed, max. (strokes/h)* 4.300 5.400
Max. number of sheets at wrap or Z-fold / at half fold 8 / 10 (+ enclosures) 8 / 10 (+ enclosures)
Cascade function (automatic switch if one feeding station is empty) yes yes
Bypass function yes yes
Number of jobs programmable 24 24
Operating panel with large display and drawings, graphics and texts yes yes
„Swift Start“, Quick start program yes yes
Daily mail function yes yes
Automatic double sheet and missing sheet control yes yes
Automatic fault management yes yes
Table, electronically adjustable in height optional optional
Options
High capacity feeding module for documents with 2 stations 2 2
OMR, Barcode or datamatrix code reading yes yes
Increasing the feeding volume of envelopes to maximum 4 mm no yes (not retrofitable)
Inline connection to a franking machine, incl. integrated C4 stacker yes yes
C4 envelope sealing unit yes yes
Conveyor stacker yes yes

 *depending on material and applications subject to technical changes
